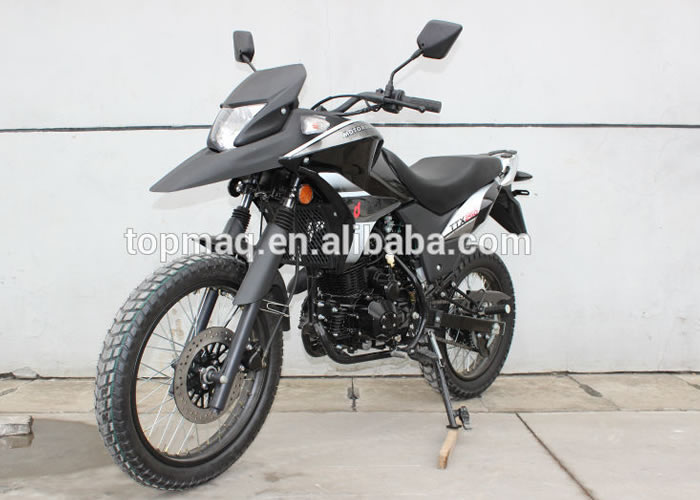

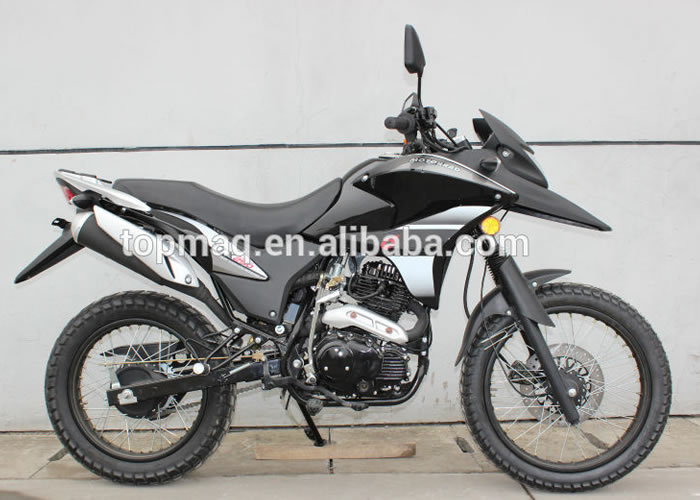

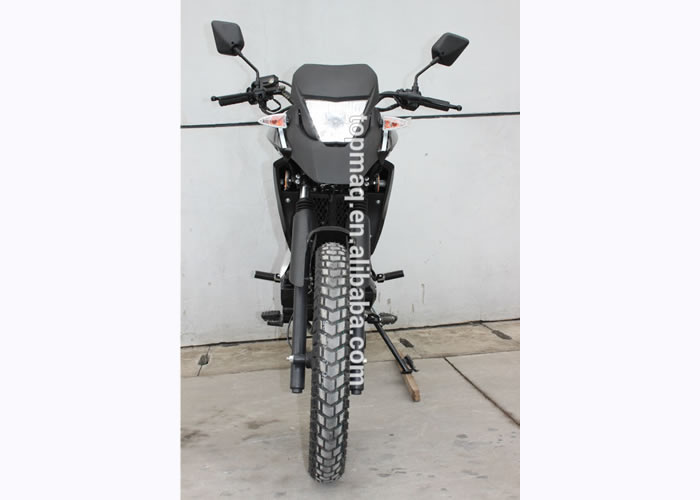

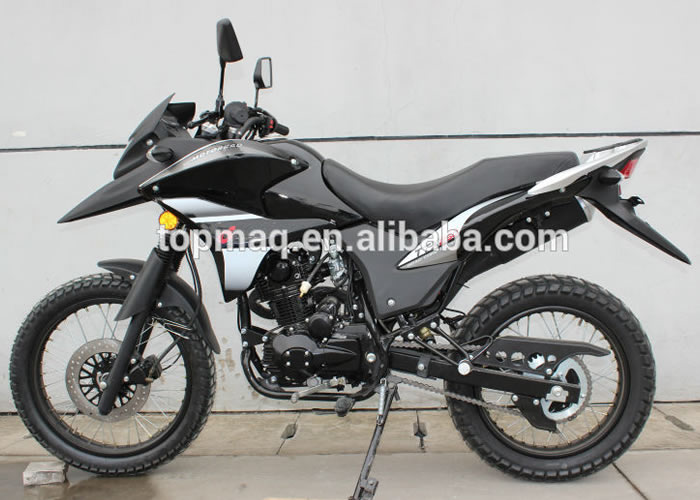

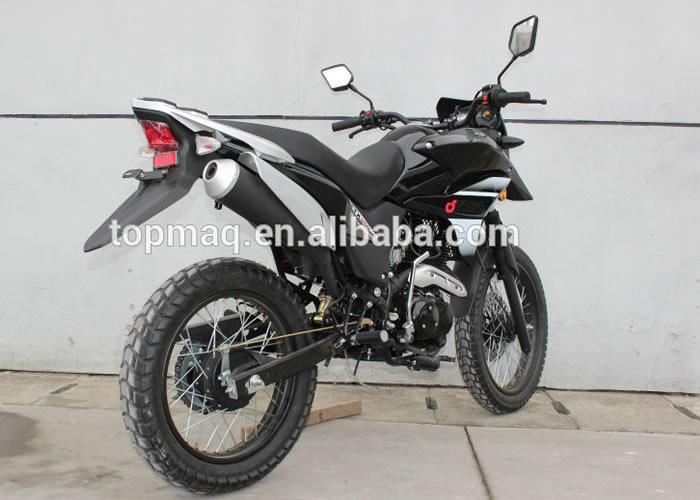

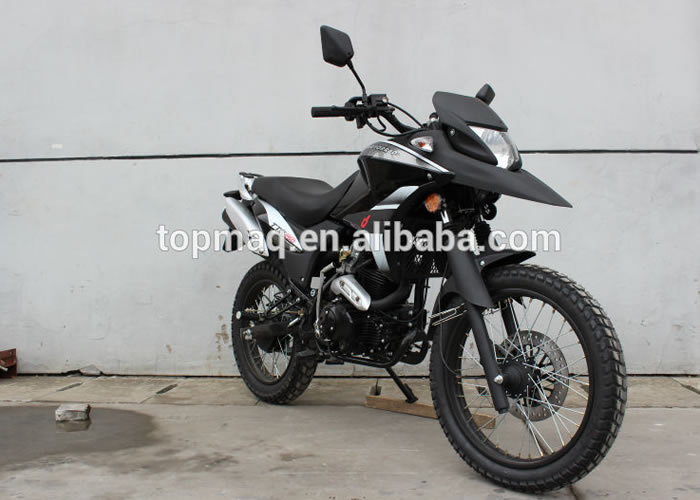

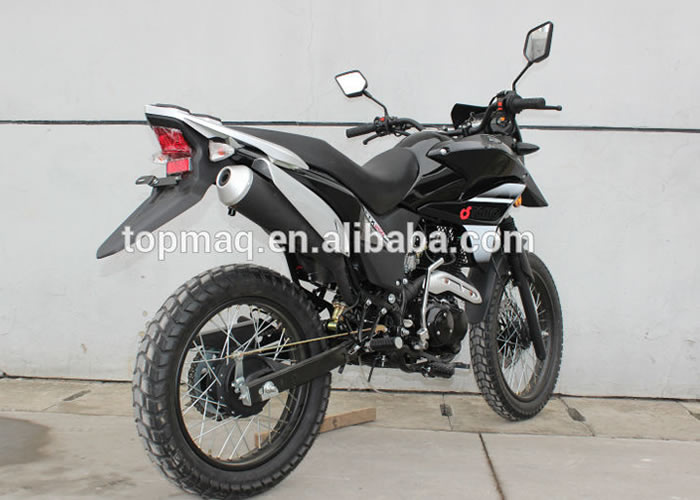

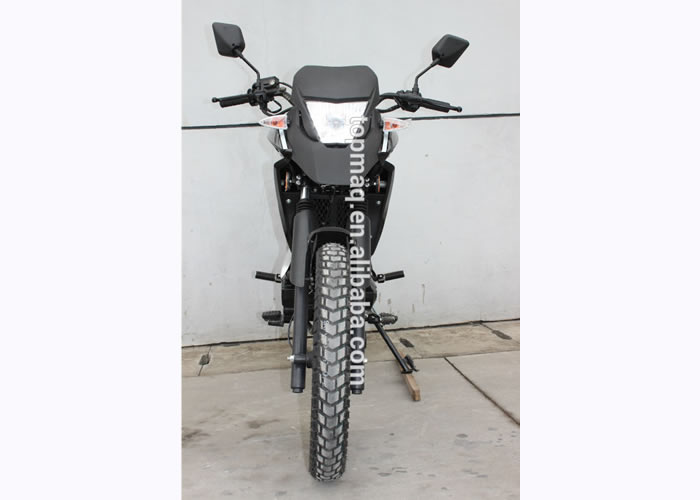

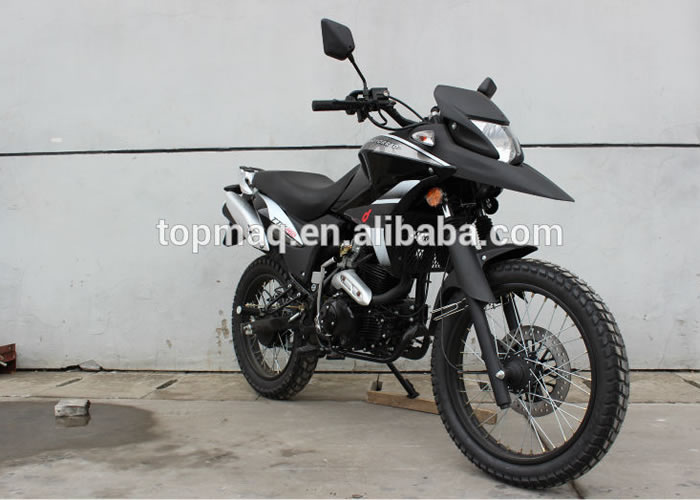

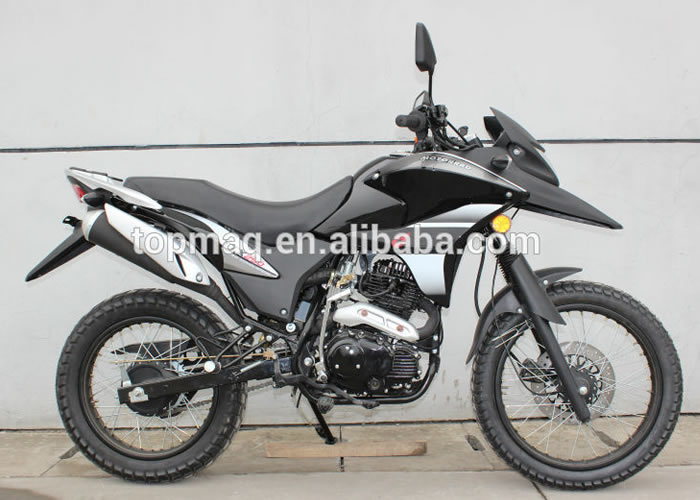

150cc 200cc off road motorcycle
150cc 200cc off road motorcycle
Packaging & Delivery
| Displacement | 149.5ml | 197ml | 223ml |

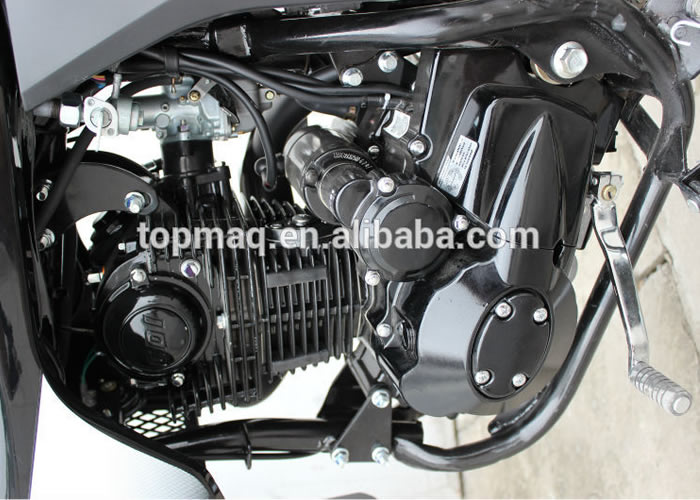

| Engine | 1 Cylinder, 4 Stroke | 1 Cylinder, 4 Stroke | 1 Cylinder, 4 Stroke |
| Bore & Stroke | 62*49.5 | 63.5x62.2 | 65.5x66.2 |
| Cooling System | Air Cooled | Air Cooled | Air Cooled |
| Compression Ratio | 9.2:1 | 9.0:1 | 9.25:1 |
| Fuel feed | 90# | 90# | 90# |
| Max Power( Kw/rpm) | 8.8/8500 | 10.2/8000 | 12/7500 |
| Max Torque(N.M/rpm) | 11.2/6500 | 13.8/6500 | 18/5500 |
| Max Speed | 90km/h | 95km/h | 125km/h |
| Ground clearance | 310mm | 310mm | 310mm |
| Fuel consumption | 2.2L/100KM | 2.4L/100KM | 2.4L/100KM |
| Ignition | CDI | CDI | CDI |
| Transmission | Chain | Chain | Chain |
| Fuel tank capacity | 9L | 9L | 9L |
| Starting System | Electric+kick start | Electric+kick start | Electric+kick start |
| Front Brakes | Disc brake | Disc brake | Disc brake |
| Rear Brake | Disc brake | Disc brake | Drum brake |
| Front suspension | Hydraulic Suspension | Hydraulic Suspension | Hydraulic Suspension |
| Rear suspension | Hydraulic Suspension | Hydraulic Suspension | Hydraulic Suspension |
| Front tires | 90/90-19 | 90/90-19 | 2.75-21 |
| Rear tires | 110/90-17 | 110/90-17 | 4.60-18 |
| Wheel Base | 1400mm | 1400mm | 1430mm |
| Payload | 150kg | 150kg | 150kg |
| Net Weight | 115kg | 115kg | 123kg |
| Gross Weight | 130kg | 130kg | 140kg |
| Packing type | steel+carton | steel+carton | steel+carton |
| size | 2090*780*1150 | 2090*780*1150 | 2070 *880 * 1210 mm |
| packing size | 1820*460*860mm | 1820*460*860mm | 1820*460*860mm |
| 20' GP container | 30 units | 30 units | 30 units |
| 40' HQ container | 96units | 96units | 96 units |
Product Description
Packing
