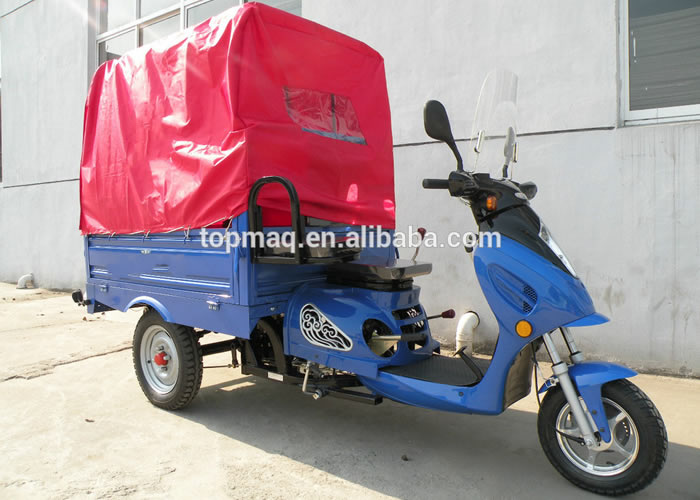

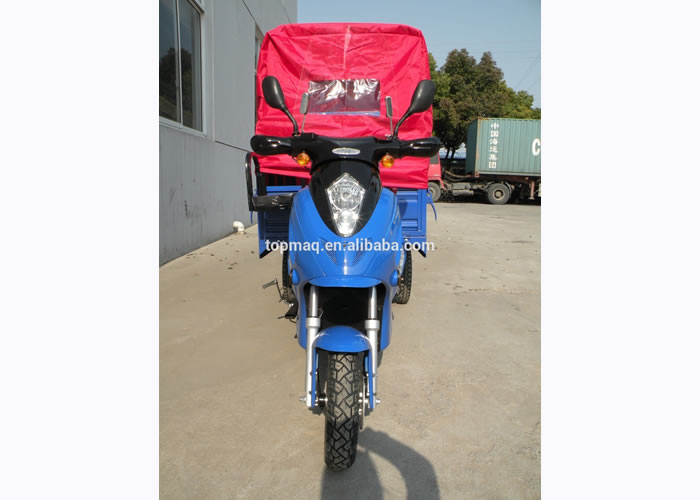

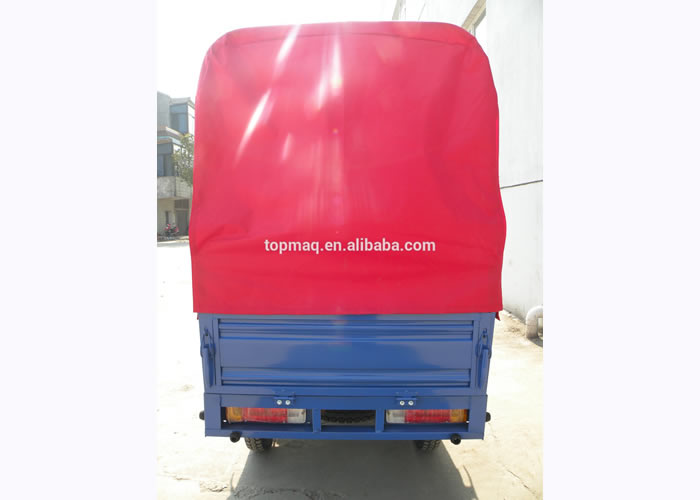

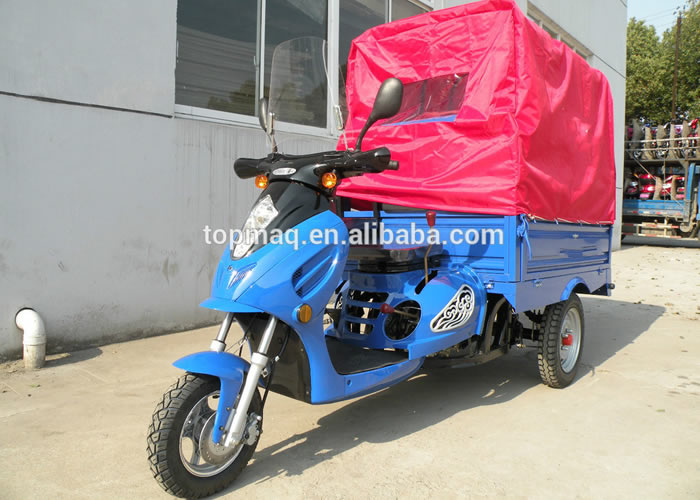

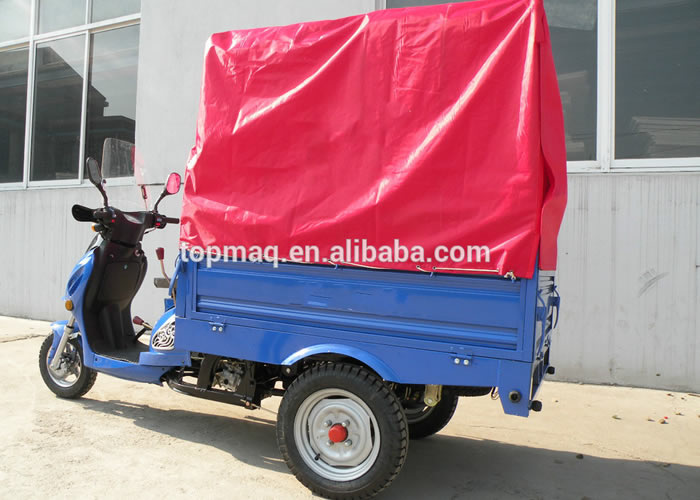

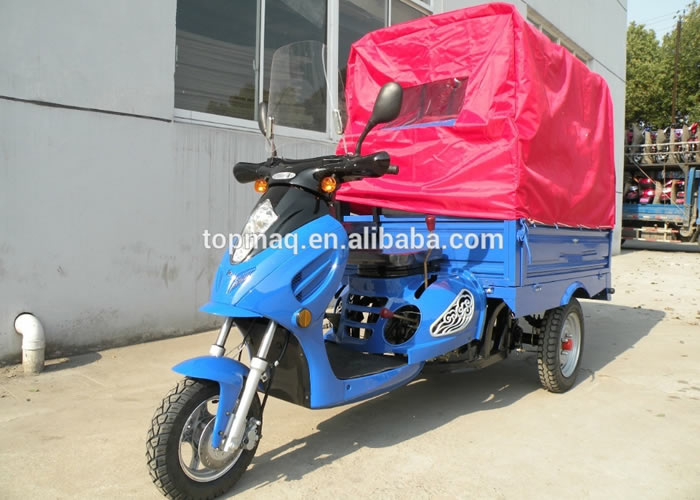

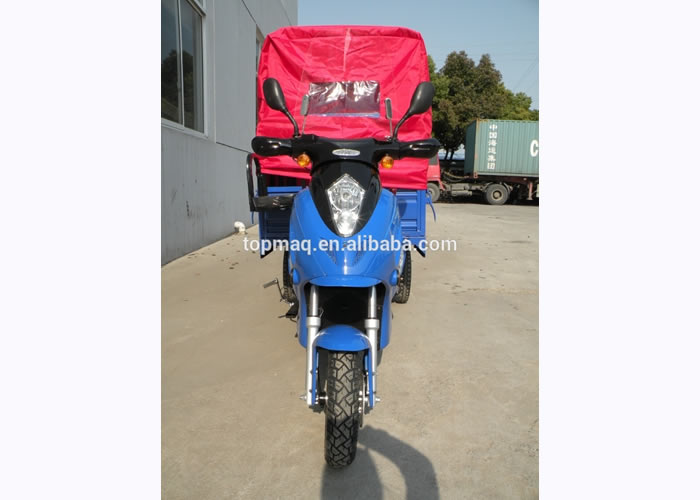

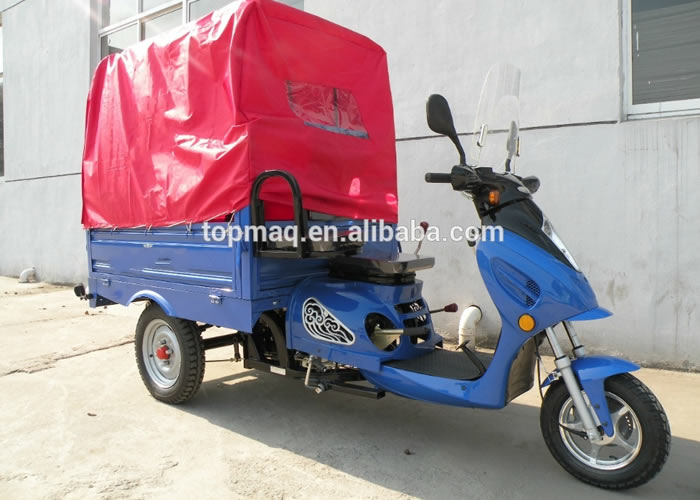

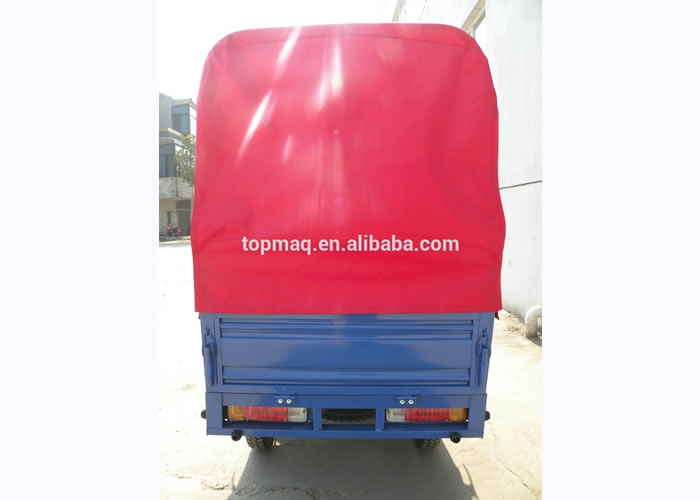

scooter tricycle
scooter tricycle
Packaging & Delivery
| Option: | |
| Displacement | 106.7ml |
| Engine | Single Cylinder, 4 Stroke |
| Bore & Stroke | 52.4*49.5 |
| Cooling System | Air Cooled |
| Compression Ratio | 9.7:1 |
| Fuel feed | 90# |
| Max Power( Kw/rpm) | 4.7/8000 |
| Max Torque(N.M/rpm) | 6.7/6000 |
| Max Speed | 50 kmph |
| Fuel consumption | 2.0L/100KM |
| Drive Train | - |
| Ignition | CDI |
| Transmission | axle |
| Fuel tank capacity | 5.0L |
| Starting System | Electric+kick start |
| Clutch | CVT HALF |
| Front Brakes | Disc brake |
| Rear Brake | Drum brake |
| Front suspension | Hydraulic Suspension |
| Rear suspension | 2 spring Suspension |
| Front wheels | Alum 3.00-10 |
| Rear wheels | Steel 4.00-12 |
| Axle Base | 1720mm |
| Wheel Base rear | 865mm |
| Seat Height | 760mm |
| max load | 300kg |
| Net Weight | 195KG |
| Gross Weight | 205KG(CKD) |
| Carriage Size | 1400*1000*320mm |
| Size | 2690×1020×1260mm |
| Packing type | Carton(CKD) / Steel + Carton(SKD) |
| Packing size | 2450*1000*850mm |
| 20' GP container | 20 units(CKD) / 8units(SKD) |
| 40' HQ container | 60 units(CKD) / 24units(SKD) |
