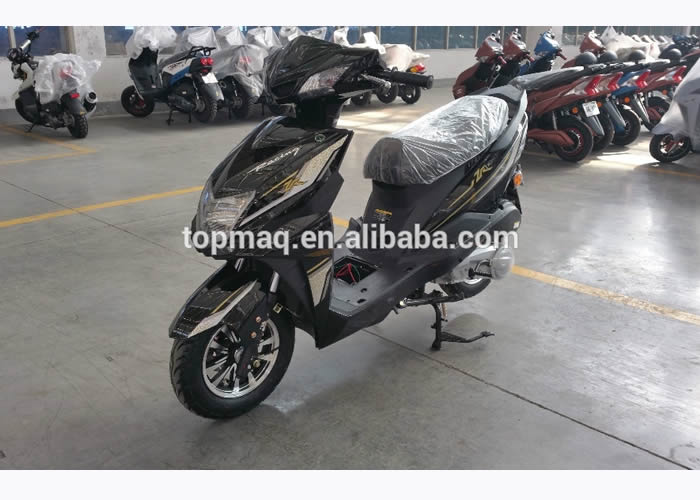

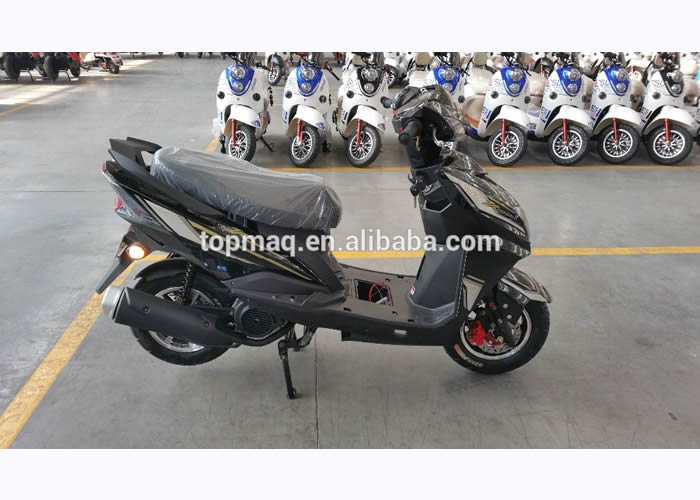

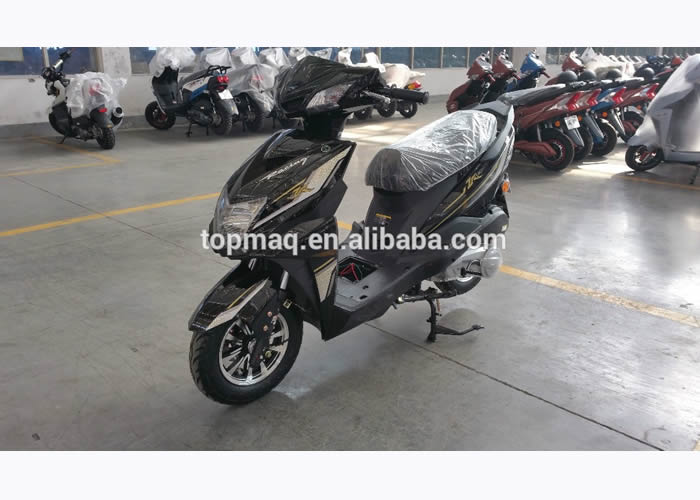

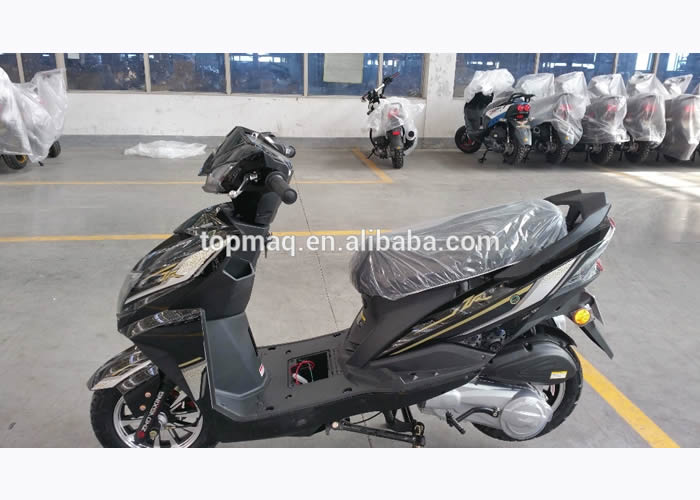

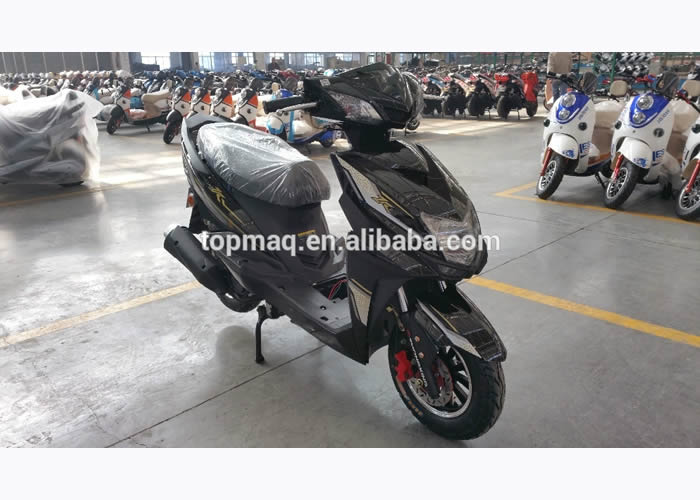

125CC gas scooter
125CC gas scooter
Packaging & Delivery
| MODEL | TM-ZR | L*W*H | 1,840mm×690mm×1,110mm |
| SEAT HEIGHT | 760mm | ||
| NET WEIGHT | 112kg | ENGINE TYPRE | 1 CYLINDER, AIR COOL, 4 STROKE |
| DISPLACEMENT | 125cm³ | BORE×STROKE | 51.5mm×60.0mm |
| COMPRESSION RATIO | 9.5:1 | MAX POWER | 6.1kW/7500r/min |
| MAX TORQUE | 8.3Nm/6000r/min | STARTER | KICK STARTER |
| FUELL TANK VOLUME | 7L | ||
| IGNITION | CDI | BATTERY | 12V,6.0AH |
| DRIVE CHAIN | CVT | TYRE SIZE | 3.50-10/3.50-10 |
| BRAKE MODE | DISK/DRUM | ||
| FRONT HEAD LIGHT LAMP | 12V,35W/35W | WHEEL BASE | 1250mm |
Product Description
Packing
